46mm Monotube Shock Absorber
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Bilstein 5100 Series
- Made In The USA
- Monotube Gas Pressure Construction
- Designed For Consistent Fade-Free Performance
- Self-Adjusting Deflective Disc Valving
- High-Flow Piston Reduces Harshness
- Available In Stem-To-Eye/Eye-To-Eye Mounting Configurations
- Zinc Coating For Resistance To Off-Road Elements
- Custom Valving Available
- Factory Rebuildable
Application Summary:
| Year | Make/Model |
|---|---|
| 1959-1983 | Jeep CJ5 |
| 1966-1968 | Jeep CJ5A |
| 1976-1986 | Jeep CJ7 |
| 1960-1982 | Toyota Land Cruiser |
| Attributes | |
| Adjustable | No |
| ASIN | B000CIPD8O |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46mm |
| Body Inside Diameter | 46mm |
| Boot Included | Black Bellows |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length | 14.130 in. |
| Collapsed Length (IN) | 14.13 |
| Collapsed Length (IN) Rounded | 14 |
| Collapsed Length (in.) | 14.13 |
| Collapsed Length (in.) Rounded | 14 |
| Collapsed Length (mm) | 359 |
| Collapsed Length Rounded | 14 in. |
| Compression @0.52m/s | 700 |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| Extended Length | 22.580 in. |
| Extended Length (IN) | 22.58 |
| Extended Length (IN) Rounded | 23 |
| Extended Length (in.) | 22.580 in. |
| Extended Length (in.) Rounded | 23 |
| Extended Length (mm) | 573.5mm |
| Extended Length Rounded | 23 in. |
| Finish | Zinc Plated |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Hazardous Material Code | N |
| Internal Design | Monotube |
| Life Cycle Status Code | Available to Order |
| Lower Mount Type | Eye 0.625 in. |
| Mount Type | Eye-to-Eye |
| NAFTA Preference Criterion Code | D |
| Optional Reservoir Clamp | N/A |
| Rebound @0.26m/s | 2550 |
| Rebound @0.52m/s | 2550 |
| Reservoir | No |
| Reservoir Included | No |
| SDR Required Flag | N |

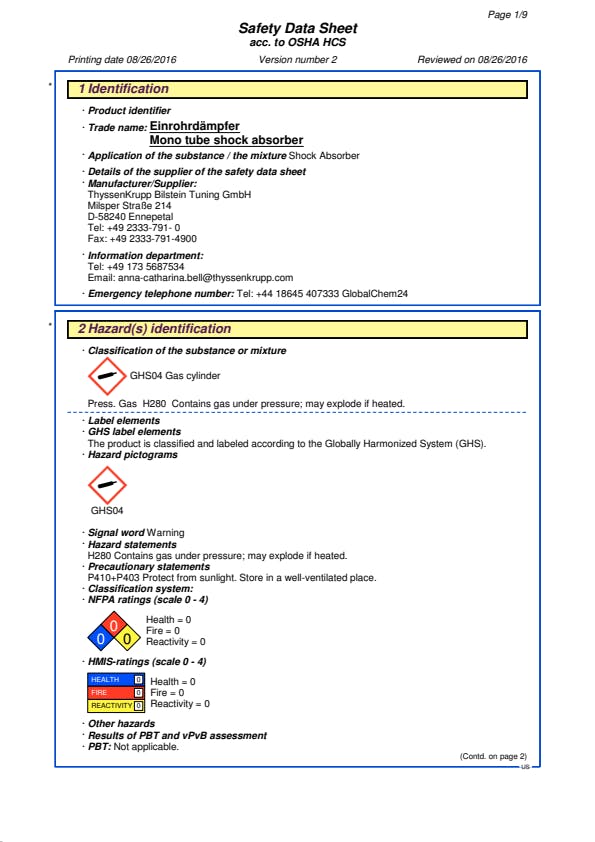

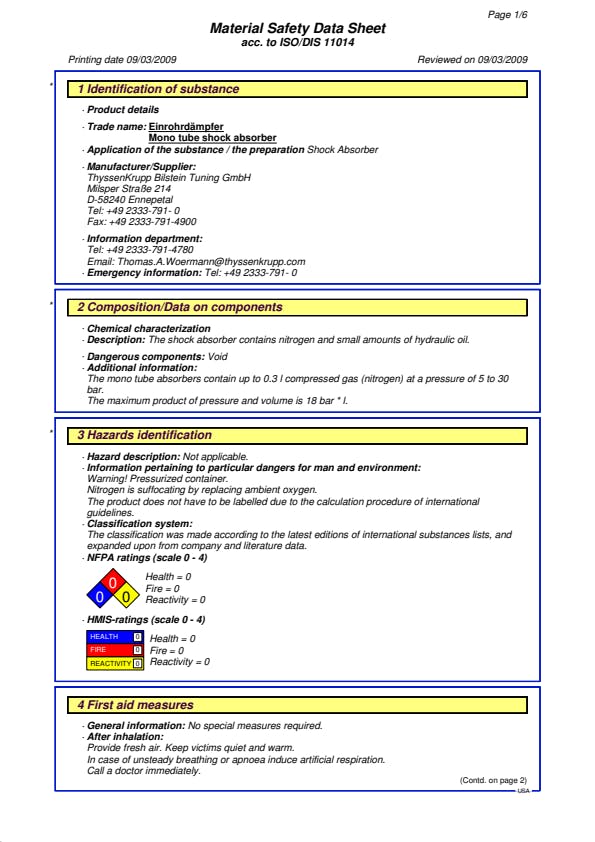

| SDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Series | B8 5125 |
| Shock Stroke (in.) | N/A |
| Upper Mount Type | Eye 0.625 in. |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Warranty Time | 3 |
| GTIN | 00651860453774 |
