This K&N NextGen cold air intake system is engineered for your RAM 1500 V6-3.6L F/I. A high-density polyethylene (HDPE) rotationally molded tube helps increase the volume of airflow by 61.8% to your engine and provides an increase of 14.66 horsepower and 25.70 torque with no tune required. This intake system is paired with a washable, reusable High-Flow LIFETIME Air Filter featuring oiled cotton filter media. The oversized, conical design allows you to go up to 100,000 miles between filter services under normal highway driving conditions. A custom designed NextGen air box helps protect intake air from the high temperature of your engine bay, and the entire system can typically be installed in less than 60 minutes.
- Dyno-Proven Performance: Dyno-proven to deliver a guaranteed increase in horsepower and torque on your engine's stock tune. Experience the exciting roar of your engine during acceleration, without any drone at cruising speeds.
- NextGen Airbox: The hybrid airbox features a semi-enclosed airbox that helps lower air temperatures, an enlarged fresh air inlet for improved airflow, and better protection against contaminants.
- Oversized Air Filter: An oversized air filter features an increased surface area and a radius-entry design, both engineered to increase airflow and enhance performance.
- Large-Diameter Tube: The large-diameter, CAD-designed intake tube features strategically positioned air channels that increase airflow, boosting airspeed and delivering more air to your engine for added performance.
- Precision Engineering: Each NextGen intake is precisely engineered for your vehicle, enhancing the style of your engine bay while increasing horsepower, torque, and airflow.

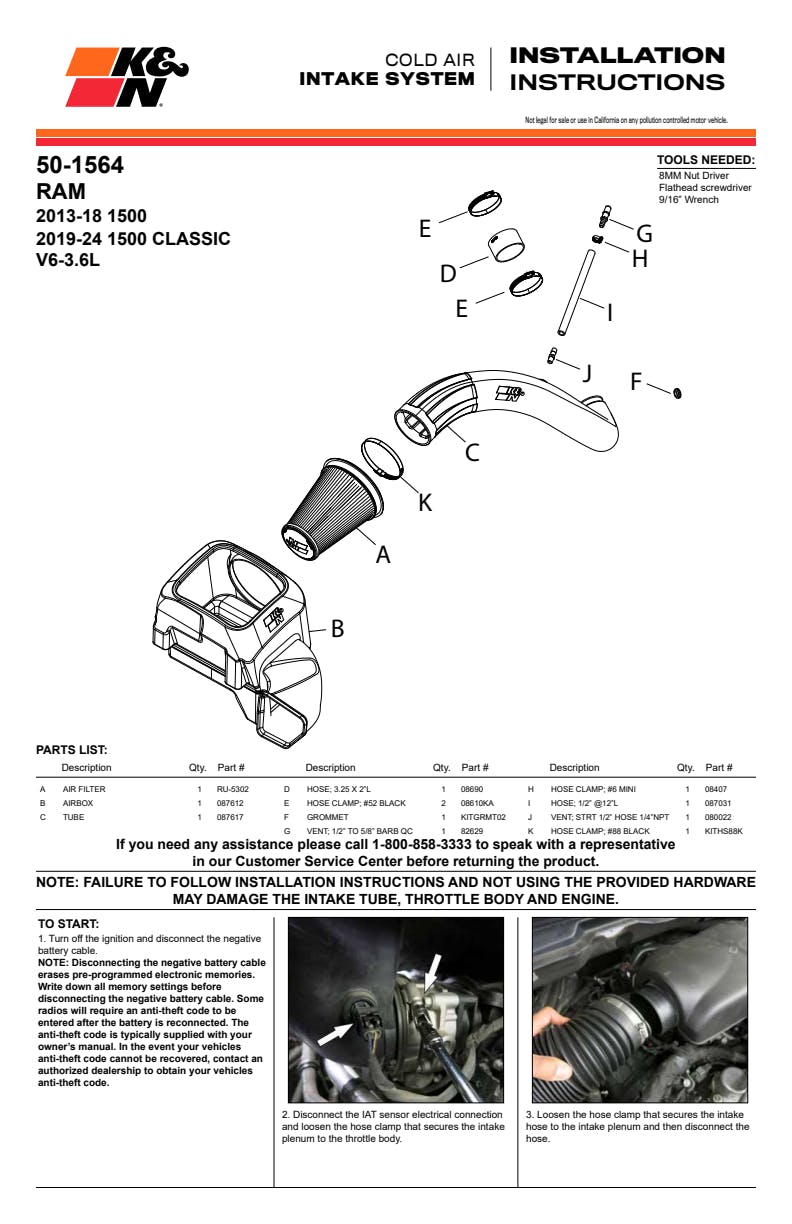

- Simplified Installation: The simplified design reduces mounting hardware, while Quick-Lock™ technology allows the filter to snap into place. A sealing bead secures the system with just one hose clamp.
- 50+ Years of Trusted Protection: Since 1969, K&N filters have delivered superior filtration, extended cleaning intervals, and proven performance, trusted by racers and enthusiasts alike.
- No-Hassle Warranty: NextGen intakes are backed by a Lifetime Limited Warranty and will preserve your factory warranty. Proudly engineered in the USA with dedicated customer support.
Application Summary:
| Year | Make/Model |
|---|---|
| 2013-2021 | Ram 1500 |
| 2019-2024 | Ram 1500 Classic |
| Attributes | |
| Air Box Included | Yes |
| Air Filter Color | Red |
| Air Filter Material | Cotton Gauze |
| Air Filter Outlet Shape | Round |
| Air Filter Washable | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| California Restricted | Not legal for sale or use in California |
| Clamp Color/Finish | Natural |
| Clamp Material | Stainless Steel |
| Clamp Style | Worm Gear |
| Clamps Included | 3 |
| Country of Origin (Primary) | US |
| Coupler Color/Finish | Black |
| Couplers Included | 3 |
| Emission Code | Not in CA |

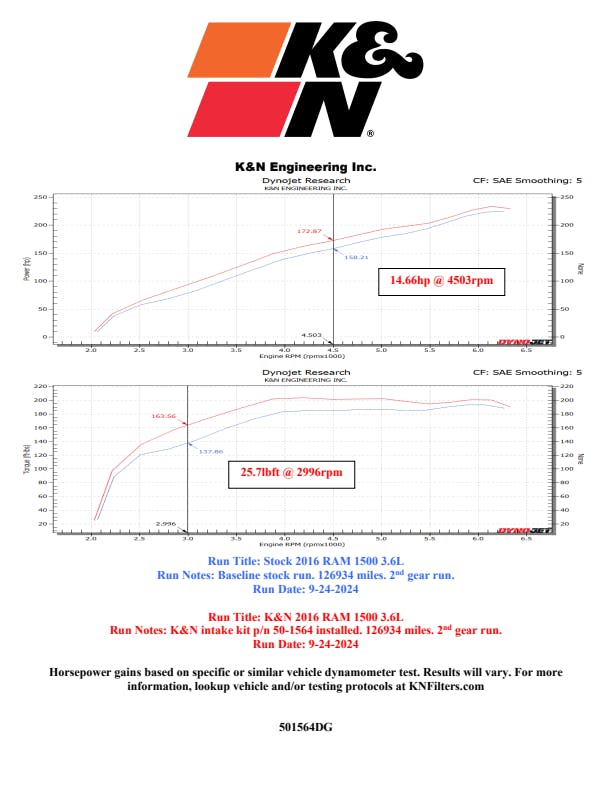

| Estimated Horsepower Gain | 14.66 HP @ 4503 RPM |
| Estimated Torque Gain | 25.7lbft @ 2996rpm |
| Harmonized Tariff Code (Schedule B) | 8421310000 |
| Hazardous Material Code | N |
| Intake CFM Gain | 62 |
| Intake Pipe Color / Finish | Black |
| Intake Pipe Material | High-Density Cross-Linked Polyethylene |
| Life Cycle Status Code | Available to Order |
| Mass Air Flow Sensor Adapter Included | No |
| Mounting Hardware Included | Yes |
| NAFTA Preference Criterion Code | B |
| Oil Included | Yes |
| Package Material | Corrugated |
| Package Type | Box |
| Product Style | 50 Series GEN3 |
| Replacement Filter | RU-5302 |
| SDR Required Flag | N |
| Standard Pack | 1 |
| Street Legal In All US States | Not legal for sale or use in California on any pollution controlled motor vehicle. |
| TUV Approved (Europe) | No |
| Warranty | No-Hassle Lifetime Limited |
| Weight | 17 lb (7.7 kg) |
| GTIN | 00024844408686 |
