Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
By replacing your current VW radiator with a Mishimoto performance aluminum radiator, you will notice a cooler more efficient running engine.All Mishimoto Volkswagen R32 performance aluminum radiators are dual pass, engineered to maximize cooling efficiency, protect your car from the overheating, and boost overall engine functions.With its lightweight dual core, 100-percent brazed aluminum, and polished tank ends installing a direct OEM fit Mishimoto radiator is effortless, no cutting or modification is required.All Mishimoto radiators come with a lifetime warranty.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Application Summary:
| Year |
Make/Model |
| 2008 |
Audi TT Quattro |
| 2010-2013 |
Volkswagen Golf |
| 2005-2013 |
Volkswagen Jetta |
| 2008 |
Volkswagen R32 |
| 2006-2009 |
Volkswagen Rabbit |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
16.85 |
| Core Length |
25.6 |
| Core Material |
Aluminum |
| Core Thickness |
1.57 |
| Country of Origin (Primary) |
CN |
| Dimensions |
30.5in x 19.1in x 2.07in |
| Down Flow Or Cross Flow Type |
Cross Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
3.67 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.26 |
| Inlet Location |
Top Left |
| Install Difficulty |
4 |
| Installation Difficulty |
4 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.26 |
| Outlet Location |
Bottom Left |
| Overall Height |
30.5 |
| Overall Length |
19.1 |
| Overall Width |
2.07 |
| Radiator Cap Included |
No |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2008 Volkswagen R32 3.2L |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |

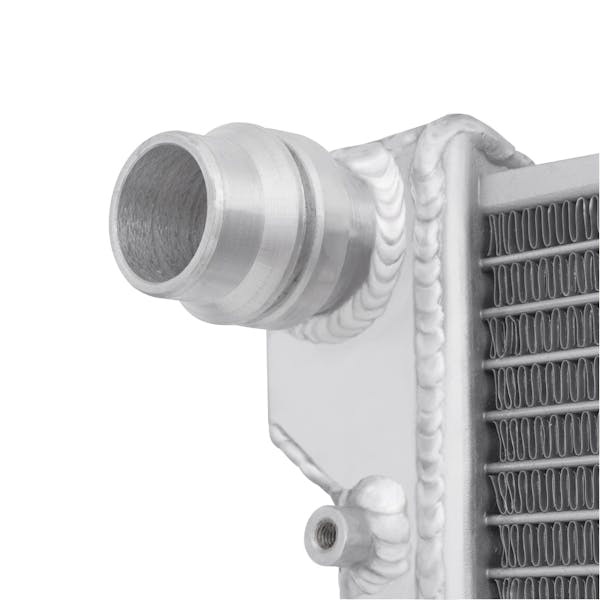

Features factory-style, CNC-machined, quick-disconnect inlet and outlet connections which mate perfectly with the stock hoses |
| SellingPoint06 |
Perfect for use on the street, track, or autocross course |
| SellingPoint07 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 2008 Volkswagen R32 3.2L |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Features factory-style, CNC-machined, quick-disconnect inlet and outlet connections which mate perfectly with the stock hoses |
| SellingPoint6 |
Perfect for use on the street, track, or autocross course |
| SellingPoint7 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
2005-2013 Volkswagen Jetta 2.5L--2005-2013 Volkswagen Rabbit 2.5L--2005-2013 Volkswagen Golf 2.5L--2007-2008 Audi TT Quattro 3.2L |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
16.85 |
| TechSpec Core Length (in) |
25.6 |
| TechSpec Core Thickness (in) |
1.57 |
| TechSpec DPI |
2995 |
| TechSpec Drain Plug Thread Size |
N/A |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
3.67 |
| TechSpec Includes |
Mishimoto Radiator--Magnetic Drain Plug--Lifetime Warranty |
| TechSpec Inlet (in) |
1.26 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| TechSpec Outlet (in) |
1.26 |
| TechSpec Overall Height (in) |
30.5 |
| TechSpec Overall Length (in) |
19.1 |
| TechSpec Overall Width (in) |
2.07 |
| TechSpec Overall Width (ins) |
2.07 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354803556 |
