High-Current Solid-State Relay 35 Amp per channel up to 140 Amp continuous
Clean up your wiring with an MSD Solid-State High Current Relay Block. This high current module takes the place of 4 standard relays and eliminates unsightly wiring. Four independent channels can be activated using either power or ground. Each channel is capable of handling up to 35 Amps of continuous current, providing up to 140 Amps of power. It also has the capability of Pulse Width Modulation (PWM). With a PWM input, you can control the output at a rate of 15 hertz and a duty cycle of 50-90%. Controls electric fans, water pumps, nitrous solenoids, auxiliary lighting and any other electrical accessories that would normally require a relay.
Clean up your wiring with an MSD Solid-State High Current Relay Block. This high current module takes the place of 4 standard relays and eliminates unsightly wiring. Four independent channels can be activated using either power or ground. Each channel is capable of handling up to 35 Amps of continuous current, providing up to 140 Amps of power. It also has the capability of Pulse Width Modulation (PWM). With a PWM input, you can control the output at a rate of 15 hertz and a duty cycle of 50-90%. Controls electric fans, water pumps, nitrous solenoids, auxiliary lighting and any other electrical accessories that would normally require a relay.
- Combined total continuous current rating of 140 amps
- Multiple mounting options
- A PWM signal can be used in the Solid-State Relay Module with a maximum frequency of 150 hertz and a duty cycle range from 50% to 90%.
- Diagnostic LED’s and status indicators
- Clean, easy install with minimum wiring
- Single wire activation by switching power or ground
- Available in Red or Black
- Channels can be run in parallel for devices requiring more than 35 Amp single-channel rating
- Operates from 7-Volts to 20-Volt supply
- 4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
- Over-temp, short circuit and overload protection

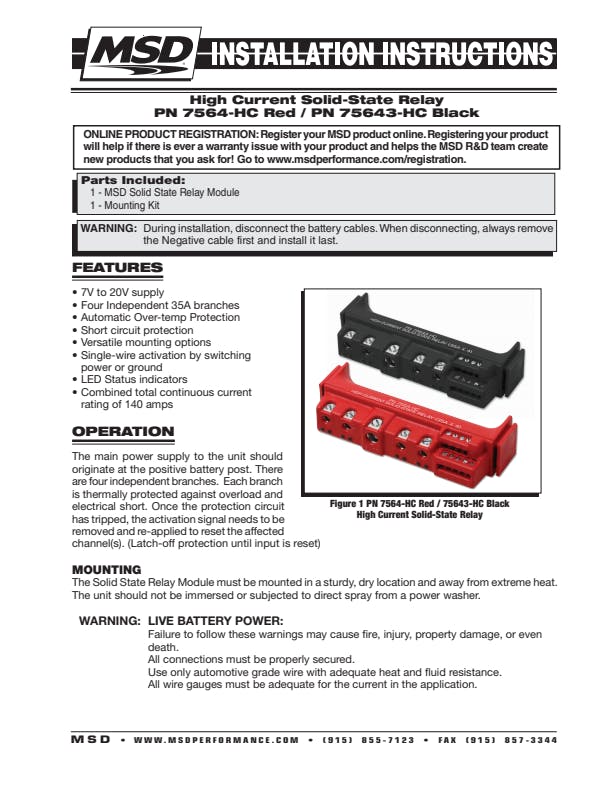

Information:
* Amperage rating is per channel *Recommended Wire Gauge: Main Input BATT + - 2 AWG Channel 1-4 Outputs - 8 AWG 12 Volt and Ground Activation Wires - 18-22 AWG| Attributes | |
| Amp Rating | 4 Channel - 35 Amps Each |
| Amperage Rating per Channel | 35 |
| Brand | MSD |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Electrical, Electrical, Lighting and Body |
| Channel Count | 4 |
| Color | Black, Black |
| Country of Origin (Primary) | US |
| Emission Code | 5, 5 |
| Harmonized Tariff Code (Schedule B) | 8511804000 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| NAFTA Preference Criterion Code | B |
| Part Type | Multi-Purpose Relay, Multi-Purpose Relay |
| Product Type | Solid State Relay, Solid State Relay |
| Sale Category | Electrical |
| SDR Required Flag | N |
| Series | Ignition Accessories |
| Sub Category | Relays, Relays |
| Subcategory | Switches and Relays |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 1 Year Warranty, Manufacturer's Limited 1 Year Warranty |
| GTIN | 00090127108406 |
